Questions are the main source of information exchange between patients and XUND
Model definition
|
Property name |
Property type |
Property description |
|---|---|---|
|
|
string |
Question’s identifier |
|
|
string (localized HTML text) |
Text to show to patient |
|
|
boolean |
Indicator whether the question can be skipped |
|
|
boolean |
Indicator whether the question was already answered |
|
|
Defines question’s basic behavior. See type’s page for further information |
|
|
|
Defines question’s purpose in checks. It can be used to build advanced UI. See type’s page for further information |
|
|
|
Includes additional |
|
|
|
string? |
In case of TEXT type questions this regex can be used for patient-entered input client-side validation. It has value only if type is TEXT |
|
|
https://xund.atlassian.net/wiki/spaces/PUB/pages/115212784/Question#OptionList-model-definition? |
The list of selectable answers. Has value only in case of SINGLE_SELECT and EXTENDING type questions |
|
|
Information about the check’s progress |
OptionList model definition
|
Property name |
Property type |
Property description |
|---|---|---|
|
count |
number (integer) |
Count of options matching the filter |
|
values |
list of options to select |
Examples

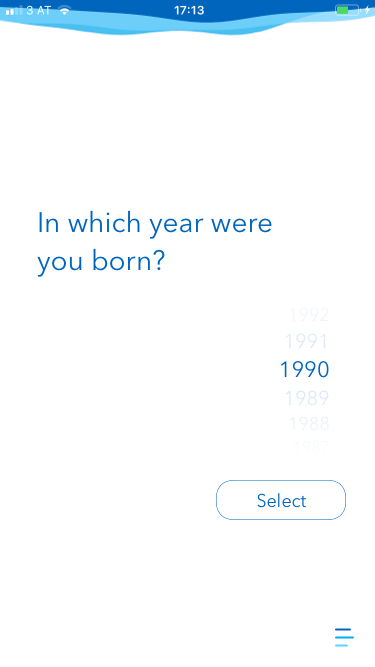

type: TEXT detailedType: AGE
JSON Model example
{
"id": "fadc8892-a7b0-473c-a67d-e8e676f0551f",
"text": "In which year were you born?",
"isSkippable": false,
"isAnswered": false,
"type": "TEXT",
"detailedType": "AGE",
"checkStateInfo": {
"detailedState": "AGE",
"state": "PROFILE"
},
"answerValidatorRegex": "^(19[0-9][0-9]|20[01][0-9]|202[0-2])$"
}
Example visualization:

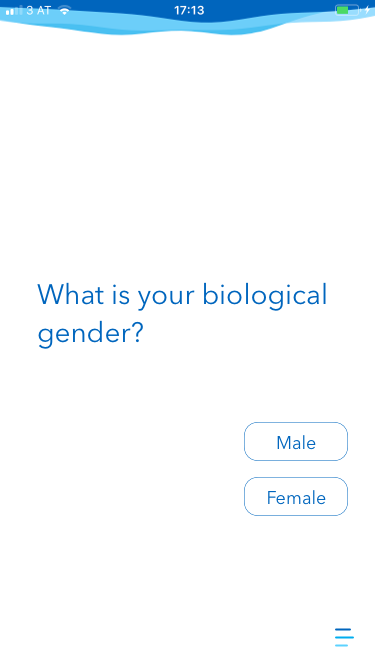

type: SINGLE_SELECT - detailedType: GENDER
JSON Model example
{
"id": "a76a62b7-657d-4f03-be77-366ffeba1de2",
"text": "What is your biological gender?",
"isSkippable": false,
"isAnswered": false,
"type": "SINGLE_SELECT",
"detailedType": "GENDER",
"checkStateInfo": {
"detailedState": "GENDER",
"state": "PROFILE"
},
"options": {
"count": 2,
"values": [{
"id": "b23eb6b5-fc24-4a49-bf7d-ab695c8f04a1",
"text": "Male",
"isSelected": false,
"type": "SURVEY_ANSWER"
}, {
"id": "80e5d6f2-d486-45c7-8e3e-7e73e3dd0519",
"text": "Female",
"isSelected": false,
"type": "SURVEY_ANSWER"
}]
}
}
Example visualization:

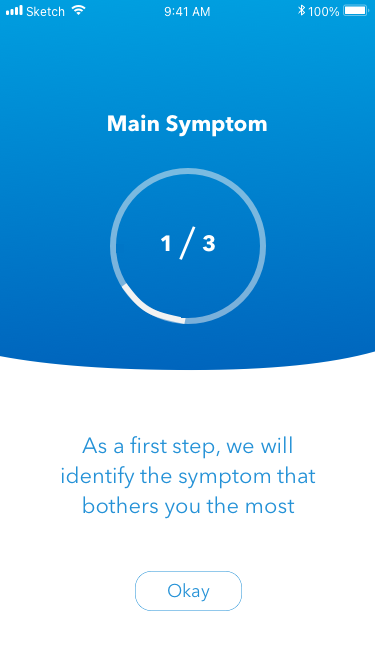

type: INFO - detailedType: PROGRESS
JSON Model example
{
"id": "4078a01d-cb04-434a-a4f8-a6e93ab49611",
"text": "As a first step, we will identify the symptom that bothers you the most",
"isSkippable": true,
"isAnswered": false,
"type": "INFO",
"detailedType": "PROGRESS",
"checkStateInfo": {
"detailedState": "MAIN_SYMPTOM_INFO",
"state": "MAIN_SYMPTOM"
},
"detailedTypeData": {
"currentStep": 1,
"numberOfSteps": 3,
"progress": 0.15,
"title": "Main Symptom"
}
}
Example visualization:
Additional information:
The user interface is considered advanced because it shows more than just the text of the question. All the information visible in the blue part of the screenshot is powered by the question’s detailedTypeData.

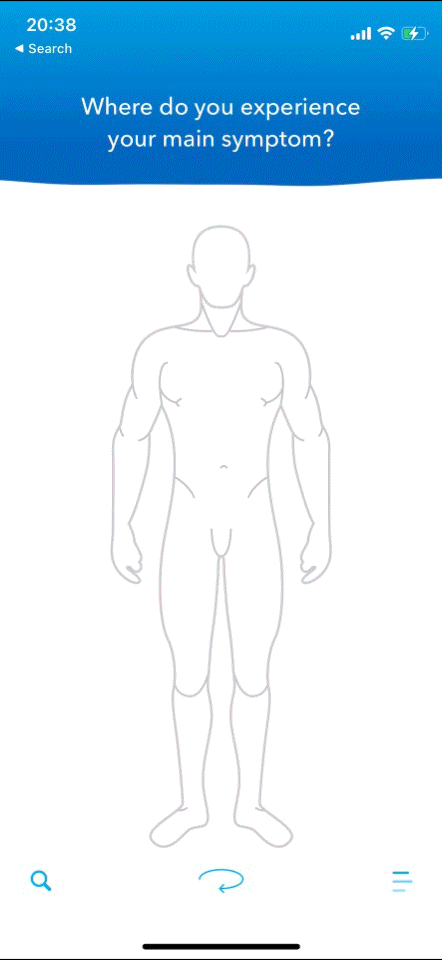

type: SINGLE_SELECT - detailedType: BODY_PART_SELECTOR
JSON Model example
{
"id": "e449e622-a1ad-4ffd-9c5f-043e69d5adcf",
"text": "Where do you experience your main symptom?",
"isSkippable": true,
"isAnswered": false,
"type": "SINGLE_SELECT",
"detailedType": "BODY_PART_SELECTOR",
"checkStateInfo": {
"detailedState": "MAIN_SYMPTOM_BODY_PART_SELECTION",
"state": "MAIN_SYMPTOM"
},
"detailedTypeData": {
"previouslySelectedBodyPartIds": [],
"gender": "MALE",
"styling": "PRIMARY"
},
"options": {
"count": 34,
"values": [{
"id": "4db32d26-15d4-4155-b947-9640bfe85d48",
"text": "Ankle",
"type": "BODY_PART",
"code": "ankle",
"isSelected": false
}, {
"id": "70459fc7-0916-46bb-a91a-d97681cb9614",
"text": "Armpits",
"type": "BODY_PART",
"code": "armpit",
"isSelected": false
}, {
"id": "b7e1aa1a-b1aa-44bf-a52d-4677b3b4ab6f",
"text": "Back",
"type": "BODY_PART",
"code": "back",
"isSelected": false
}, {
"id": "421dec65-85ed-4d3d-8b86-b6d6cc399345",
"text": "Belly",
"type": "BODY_PART",
"code": "stomach",
"isSelected": false
}, {
"id": "2657e010-d733-4cb8-b172-3ed728a32ba7",
"text": "Breast",
"type": "BODY_PART",
"code": "breast",
"isSelected": false
}, {
"id": "fc56bd7f-5f33-4a64-9741-cf57b6b8bcf8",
"text": "Buttocks",
"type": "BODY_PART",
"code": "buttocks",
"isSelected": false
}, {
"id": "bf0fcc65-dd53-496f-bc23-e5d840629797",
"text": "Ear",
"type": "BODY_PART",
"code": "ear",
"isSelected": false
}, {
"id": "4b0ef141-d9bc-46ad-ad0f-d56193ccf173",
"text": "Elbow",
"type": "BODY_PART",
"code": "elbow",
"isSelected": false
}, {
"id": "a2494584-fe12-40ef-bac2-ac53e5232ae5",
"text": "Eyes",
"type": "BODY_PART",
"code": "eyes",
"isSelected": false
}, {
"id": "fd06fdd8-e252-4fe3-af67-0c43480f8c0E",
"text": "Face",
"type": "BODY_PART",
"code": "face",
"isSelected": false
}, {
"id": "d84c392f-0c05-4376-ae7f-237e727d83aA",
"text": "Finger",
"type": "BODY_PART",
"code": "fingers",
"isSelected": false
}, {
"id": "5c75bd6e-b698-40a0-9c23-ca0e35cadcca",
"text": "Foot",
"type": "BODY_PART",
"code": "feet",
"isSelected": false
}, {
"id": "09a894fe-a154-404d-a408-2d7a0f8f736e",
"text": "Forearm",
"type": "BODY_PART",
"code": "forearm",
"isSelected": false
}, {
"id": "5fdbb273-84f9-418c-8956-a960383d70cc",
"text": "Genitalia",
"type": "BODY_PART",
"code": "genitals",
"isSelected": false
}, {
"id": "49998dd9-491a-4ea3-ae60-5c48b2f0626a",
"text": "Hand",
"type": "BODY_PART",
"code": "hands",
"isSelected": false
}, {
"id": "032247a1-65c0-4eaf-8b09-71ef76eefaaa",
"text": "Head",
"type": "BODY_PART",
"code": "head",
"isSelected": false
}, {
"id": "c3dbf2f6-26da-4473-a946-4df9a9925fb6",
"text": "Heel",
"type": "BODY_PART",
"code": "heel",
"isSelected": false
}, {
"id": "d84c392f-0c05-4376-ae7f-237e727d83a5",
"text": "Hip",
"type": "BODY_PART",
"code": "hip",
"isSelected": false
}, {
"id": "952cbd65-0c88-4e21-bc59-5c6a7911365f",
"text": "Knee",
"type": "BODY_PART",
"code": "knee",
"isSelected": false
}, {
"id": "253d7b60-b178-4cfc-850f-0ef5f8ad09a7",
"text": "Lower back",
"type": "BODY_PART",
"code": "lowerback",
"isSelected": false
}, {
"id": "f4288391-0ee6-4f45-8826-adf796ff8ecb",
"text": "Lower leg",
"type": "BODY_PART",
"code": "lowerleg",
"isSelected": false
}, {
"id": "834ab6f0-990f-49a7-a4d5-a4c2e22d11a1",
"text": "Mental",
"type": "BODY_PART",
"code": "mental",
"isSelected": false
}, {
"id": "6805ab57-ff41-4318-a525-c24fa9a9a6dc",
"text": "Mouth",
"type": "BODY_PART",
"code": "mouth",
"isSelected": false
}, {
"id": "b4768dcb-3e7a-499a-b3d8-7582f1930da7",
"text": "Nape",
"type": "BODY_PART",
"code": "nape",
"isSelected": false
}, {
"id": "15398f45-1491-4d70-af59-c0a909720fd4",
"text": "Nose",
"type": "BODY_PART",
"code": "nose",
"isSelected": false
}, {
"id": "ceec19ab-0a1f-4ee7-b785-34e3bd054059",
"text": "Occiput",
"type": "BODY_PART",
"code": "occiput",
"isSelected": false
}, {
"id": "6ed6c611-4fdb-48ec-8210-07ae14757728",
"text": "Shoulder",
"type": "BODY_PART",
"code": "shoulders",
"isSelected": false
}, {
"id": "fd06fdd8-e252-4fe3-af67-0c43480f8c0D",
"text": "Spine",
"type": "BODY_PART",
"code": "spine",
"isSelected": false
}, {
"id": "571c5578-a581-4431-8629-2a559627a6a9",
"text": "Thighs",
"type": "BODY_PART",
"code": "thigh",
"isSelected": false
}, {
"id": "fd06fdd8-e252-4fe3-af67-0c43480f8c09",
"text": "Thorax",
"type": "BODY_PART",
"code": "chest",
"isSelected": false
}, {
"id": "22d4e379-bfdb-4f24-af65-0c209db26aeb",
"text": "Throat",
"type": "BODY_PART",
"code": "throat",
"isSelected": false
}, {
"id": "fc56bd7f-5f33-4a64-9741-cf57b6b8bcfC",
"text": "Toe",
"type": "BODY_PART",
"code": "toes",
"isSelected": false
}, {
"id": "69126401-61e4-4dad-8cc1-ed0a0483110b",
"text": "Upper arm",
"type": "BODY_PART",
"code": "upperarm",
"isSelected": false
}, {
"id": "f4288391-0ee6-4f45-8826-adf796ff8ecB",
"text": "Wrist",
"type": "BODY_PART",
"code": "wrist",
"isSelected": false
}]
}
}
Example visualization:
Additional information:
The user interface is considered advanced because it shows more than just the text of the question and options. The options' type is BODY_PART which guarantees the existence of the code field on option objects. The code is not localized, can be used to link the options to certain points of an image of the body. The system does not differentiate between body parts on the front and back sides of the body.
